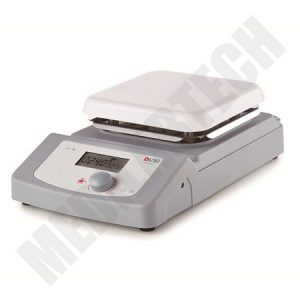

- DLAB MS-H380 Pro Digital Magnetic Hot Plate Stirrer
$600.00
Available: In Stock
A high quality magnetic hot plate that is up to all safety standards. The MS-H380 nu DLAB comes with a ceramic covered work plate. Wide range of application including operations in chemical, biological, physical or even analytical laboratories.
Enquiry about DLAB MS-H380 Pro Digital Magnetic Hot Plate Stirrer
Features:
- Upper temperature limit – 380°C
- Accurate temperature and speed readings on a hi-res LCD display
- Virtually no maintenance needed with a special brushless DC motor
- Super fast heat transfer with of the ceramic plate
- Use a PT1000 temperature sensor to externally control the operational temperature
- Digital control of the work temperature that allows for temps of up to 380 degrees Celsius
- Maximum speed of 1500 rpm, set via digital controller
- Up to 5 liters of H2O maximum stirring quantity
Product Specs
| Work plate Dimension | 140x140mm |
| Work plate material | Aluminum cover with ceramic coating |
| Motor type | Brushless DC motor |
| Motor rating input | 2.4W |
| Motor rating output | 1.8W |
| Power | 510W |
| Heating output | 500W |
| Voltage | 100-120/200-240V 50/60Hz |
| Stirring positions | 1 |
| Max. stirring quantity[H2O] | 5L |
| Max. magnetic bar[length] | 50mm |
| Speed range | 200-1500rpm |
| Speed display | LCD |
| Temperature display | LCD |
| Heating temperature range | Room temp.+5°C – 380°C |
| Over heat Protection | 420°C |
| Temperature display accuracy | ±1°C |
| External temperature sensor | PT1000 (accuracy ±0.5°C) |
| Control accuracy of sensor | ±20rpm |
| Protection class | IP21 |
| Dimension [W x D x H] | 320×180×108mm |
| Weight | 2.2kg |
| Permissible ambient temperature and humidity | 5-40°C 80%RH |
Accessories
| Cat. No. | P/N | Descriptions | Power supply |
| 8030261115 | MS-H380-Pro | LCD Digital Hotplate Magnetic Stirrer with ceramic coated plate. with PT1000 for free, (18900016),need to buy support clamp (18900148). | USA plug,100V-120V/50Hz/60Hz |
| Cn plug,200V-240V/50Hz/60Hz | |||
| Euro plug,200V-240V/50Hz/60Hz | |||
| UK plug,200V-240V/50Hz/60Hz |
| Cat. No. | P/N | Descriptions | |
| 18900148 | Support clamp of PT1000, use with MS-H280-Pro and MS-H380-Pro | ||
| 18900006 | MSBAR10 | Stirrer bar（10mm x 6mm），1pc/pk | |
| 18900007 | MSBAR15 | Stirrer bar（15mm x 8mm），1pc/pk | |
| 18900008 | MSBAR20 | Stirrer bar（20mm x 8mm），1pc/pk | |
| 18900009 | MSBAR25 | Stirrer bar（25mm x 8mm），1pc/pk | |
| 12500005 | MSBAR30 | Stirrer bar（30mm x 6mm），1pc/pk | |
| 18900011 | MSBAR40 | Stirrer bar（40mm x 8mm），1pc/pk | |
| 12500004 | MSBAR50 | Stirrer bar（50mm x 8mm），1pc/pk | |
| 18900015 | MARRM | Stirrer bar remover, length of 200mm, 1pc/pk | |
